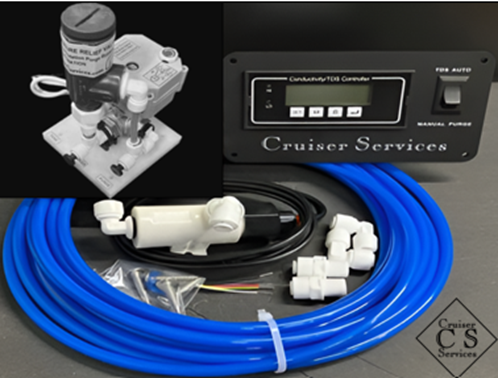

Install Kit No 3: Panel Mount Continuous TDS Meter and Automatic motorized 3-Way Valve With Purge Bypass switch
Kit No 3 automates the watermaker start-up and checking of the product water to a single button push from the standard remote panel. The kit includes the following:
- 30ft of ¼” product water line and fittings.
This is used to send the fresh drinking water to your tank. Schenker provides an 8mm line, which in the USA can be difficult to find easily sourced fittings. We provide the ¼” push-to-connect fittings that end the hose in a male ¼” NPT to interface with your boat lines and fittings.
- Automatic Motorized 3-Way Valve.
The motorized valve is controlled by the Panel Mount TDS Meter to automatically send the product water TO or AWAY from your ships water tanks based on the water quality set-point. Meter is pre-programmed to -480ppm LO and +500ppm HI
- Panel Mount TDS Continuous Read out Meter with Alarm and Relay outputs.
This will give you a continuous real-time reading of the product water quality with programmable audible alarm and relay capability
Includes the following items:
- 30ft-1/4″ Product water line with fittings to connect to ships water tank.
- DC Panel Mount TDS Meter for continuous Product Water read-out/display.
- DC Stainless 3-way motorized valve for Automatically diverting product water (To/From) ships tank-controlled by TDS Meter.
- PRV -Prevents over pressurizing product water lines when valve is rotating.
