CS Auto TDS System

AUTO TDS METER-NEW PANEL & VALVE

CS Auto TDS System - Image 2
CS Auto TDS System - Image 3
CS Auto TDS System - Image 4
CS Auto TDS System - Image 5

CS Auto TDS System

$680.00

Need Help Ordering? Connect With Rich

Part #WWQ-TDS

Automated TDS System

Works With Any Watermaker

Note: $25.00 Flat Rate Shipping Is Added To All Parts Orders To Lower48 States

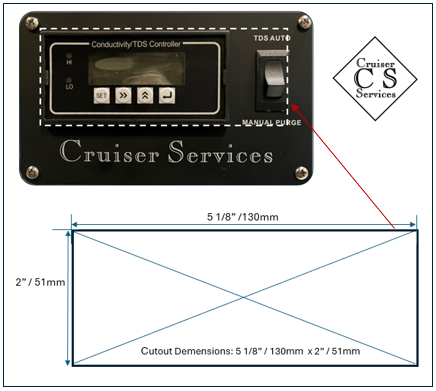

Standard Panel CS- AUTO TDS

Overall Dimensions: 6 1/16” / 154mm x 3 5/8” / 92mm
Panel Faceplate Thickness: 3/16" / 5mm

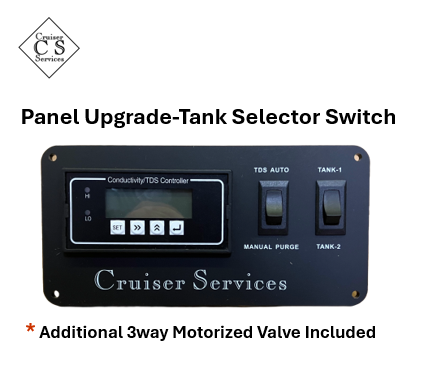

Upgrade Panel For CS- AUTO TDS

Overall Dimensions: 7 3/8” /187mm x 3 5/8” / 92mm
Panel Faceplate Thickness: 3/16" / 5mm
Same As Standard Panel + Additional Tank Selector Switch
Additional Motorized Valve Included

Price Increase: Includes Additional Panel Switch And Motorized Valve

*Available Payment Methods At Checkout*

The following payment methods are available at final checkout:
1-ACH
2-Credit Card Payment-NOTE: Adds 3% transaction fee.
3-BACS aka Direct Bank Transfer

Product Price: $680.00
Total Options:
Order Total:
RETURN TO CS-PRODUCTS
SKU: cs-auto-tds-system-11658 Category:

Description

Part #WWQ-TDS

Panel and Manual Purge Panel Switch Included. Overall Dimensions: STANDARD PANEL: 6 1/16” / 154mm x 3 5/8” / 92mm

Additional Expanded Panel and Tank 1-2 Selector Switch Available.                                                                                                                  Overall Dimensions: TDS METER + ADDITIONAL TANK SELECTOR SWITCH: 7 3/8” /187mm x 3 5/8” / 92mm

Available both 12V and 24V versions

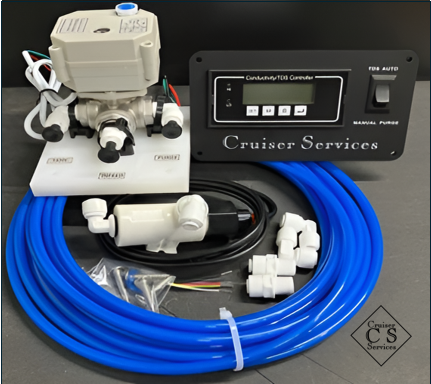

Stand Alone Watermaker Water Quality Testing and Diversion System.

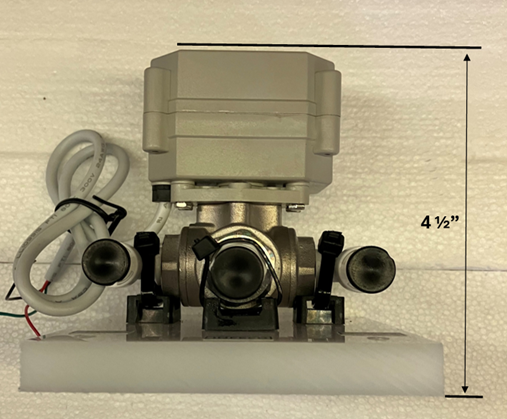

Automates product water testing and diversion during start ups. Automatically sends + 500ppm water to a purge port via the incorporated motorized 3way valve.

Valve has a manual dial in the event of power failure to 3way valve.
