OzeFridge Dual Cold Plate Combo Refrigeration System for High-Capacity Marine Cooling
OzeFridge Dual Cold Plate Combo Refrigeration System for High-Capacity Marine Cooling - Image 2

OzeFridge Dual Cold Plate Combo Refrigeration System for High-Capacity Marine Cooling

$2,745.00

Need Help Ordering? Connect With Rich

For cruisers who demand reliable, high-performance cooling at sea, the OzeFridge Dual Cold Plate Combo offers the ultimate solution. Designed for larger vessels or boats with high usage, this system combines enhanced cooling capacity with energy efficiency, ensuring your provisions stay perfectly chilled even in hot, coastal climates.

FIRST: Start by gathering your box specs:

CLICK HERE

NEXT: Use tear sheet for gathering order details:

CLICK HERE

QUESTIONS?: CONTACT Rich@Cruiserservices.com

(*REQUIRED WHEN PLACING ORDER)

STEP 1*: –Transfer your box information to order. This data will be used to design your system order.

STEP 2: Add available options: Remote Panel, Water Cooling, Power Converter.

STEP 3:*Add shipping option:
Flat Rate Shipping cost 149.00 for the lower 48 US States.

TBD-Shipping: All other destinations. You will receive an online invoice for shipping costs.

STEP 4:* After you have added / selected options   Scroll down to PLACE ORDER and proceed to checkout /processing.

Available Options During Ordering Process:

(1) 24volt D/C Step Down Module: Allows for 12volt D/C input. Ozefridge power input is 12volts D/C

(2) Enhanced Fresh Water Cooling: This unique option is an excellent choice for cruisers in warm tropic locations. Gives you added cooling when condenser temperatures reach above +109F / 43C. The water cooling feature is activated in conjunction with the #2 cooling fan; READ MORE

(3) Optional Thermo Fan Kit: Excellent choice for spill over fridge/freezer combos. Recirculates air flow for consistent temperatures, incorporates a separate matching control panel.

(4) Remote Panel Controls: Extends the controls panel to a desired remote location.

(5) Auto Power Converter: Allows system to switch from D/C to A/C  power when available.

* Ozefridge Shipping Required

Shipping: US, Canada & Mexico $149.00 is Automatically added

Shipping to other locations, You will receive additional separate invoice for shipping increase

Vessel Information

Please Provide Make, Model, Year

12V OR 24V

Ozefrige systems use 12v D/C input current. A 24v to 12v Step down converter is available for 24v equipped vessels.

Standard D/C Voltage

24v to 12v D/C Step Down Converter

Type Of Box Configuration

Select The Type Of Box This System Is Intended For:

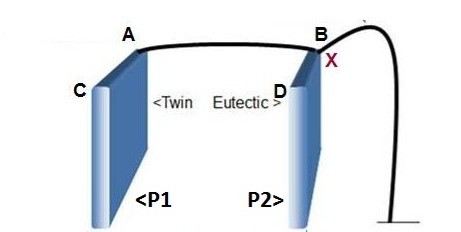

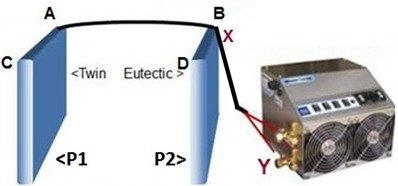

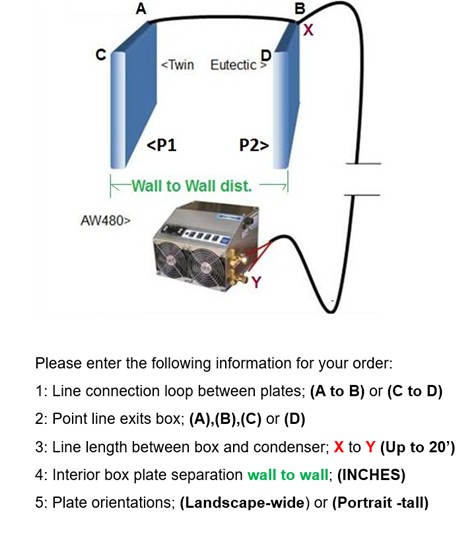

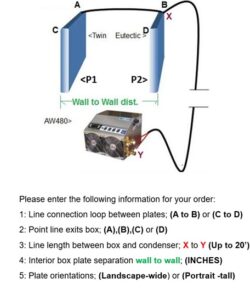

*Line connecting loop between plates (A to B) or (C to D)

*The point where the line exits the dual plates and goes to the Compressor (A), (B), (C), or (D)

*Line length box to condenser (Up to 20')

Enter line length needed in feet

*Wall to Wall box interior

Enter wall to wall between back side of plates in inches

*Cold Plate 1 Size (P1 on diagram)

*Cold Plate 1 Orentation (P1 on diagram)

*Cold Plate 2 Size (P2 on diagram)

*Cold Plate 2 Orentation (P2 on diagram)

Cold Plate Thickness Plate 1

Choose Between 2.4" and 1.6"

Cold Plate Thickness Plate 2

Product Price: $2,745.00
Total Options:
Order Total:

Related Optional Products - Add To Order:

Ozefridge Fresh Water Cooling Option-Requires Prior Configuration
Ozefridge Fresh Water Cooling Option-Requires Prior Configuration $250.00



Added fresh water cooling option must be ordered at time of original system configuration.

Fresh Water Cooling Option:

Uses a different cooling coil than the standard coil-must be designated at time of system configuration, can not be added to the standard system after it has been configured.
OzeFridge approaches the use of water cooling of the refrigerant gas condenser differently than other systems on the market, which contributes to the industry leading technical design and efficiency. First, it’s important to note that the water cooling on OzeFridge units is done by Fresh Water from your ships water tank rather than dealing with the corrosive nature of sea water! Right away, the No 1 maintenance issue with a water cooled refrigerant condenser goes away, and that is fouling and scaling of the raw water heat exchanger.

Using the ships fresh water tank for condenser cooling raises two common questions:

1) Will it make my tank water hot?

2) Is there a risk of contaminating my tank water?

1- To address warming your tank water, the BTUs of heat being transferred to your tank water are minimal and in tanks over 10Gallons, you won’t even notice a warming of the fresh water.

2- In terms of the risk of Fresh Water Contamination, the configuration of the fresh water cooling loop on the condenser eliminates the risk of Refrigerant Gas to Water contamination. The Water Loop on the condenser is also high quality and food safe.



A second important feature of the OzeFridge fresh water cooling feature is it’s control.
On systems equipped with Fresh Water Cooling, it only turns on when the Condensing unit reaches 110 degs F or higher.
So energy is not used when it’s not needed.

Concerning Energy, the ultra low amp draw micro-pump, only uses 0.5 Amp-Hours or power to the overall daily power usage, but that is off-set by the 1.0Amp-Hours of overall energy savings of the compressor. So adding the fresh water cooling option, can actually use Less Daily Power when the compressor unit is operating in Hot or Enclosed spaces without good dissipation of condenser heat.

Lastly and something to consider first, would be to understand why and when the Ozefridge system would benefit from adding fresh water cooling. Which is, when the compressor unit is going to be mounted in an enclosed space without the ability to have adequate exchange of the space air.



Ozefridge Thermo Fan Kit
Ozefridge Thermo Fan Kit $295.00

Greater Control For Spill Over Systems / Includes Remote Panel

Ozefridge Remote Surface Mount Panel Option
Ozefridge Remote Surface Mount Panel Option $95.00

Remote Location Control Panel

A/C Power Automatic Current Converter
A/C Power Automatic Current Converter $149.00

The AC Power Converter Option, allows your OzeFridge unit to run on AC Power when it’s available from either your Ships Generator or when plugged into shore power.

Why is this a valuable option?
This allows your OzeFridge unit to run directly from your ships AC power supply when AC power is available and then automatically switches to running off of your 12v DC power when the AC Power is turned off.
* Saving battery cycling when your boat is at the slip and connected to shore power
* Gives your system both AC and DC Voltage operating ability
* Allows for Refrigeration operation without drawing power from your ships battery when AC Power is available
* Automatically runs from AC Power while you are running your ships generator when your AC circuits are energized
* Fully Automatic: Switching from AC to DC power is done automatically with AC Power having priority



Ozefridge Marine Refrigeration System Recharge Hose and Gauge Kit
Ozefridge Marine Refrigeration System Recharge Hose and Gauge Kit $25.00

OZEFRIDGE Marine Refrigeration System Recharging Kit
Configured to service and recharge the OzeFridge Marine Refrigeration Compressor unit with the standard R134A Refrigerant.

$2,745.00 (Plus Any Added Options / Click PLACE ORDER)
